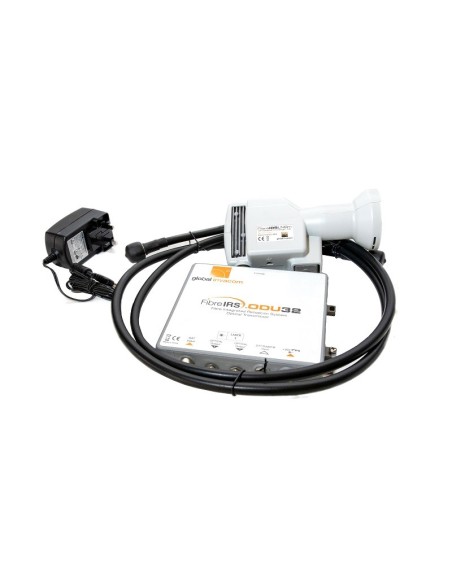

Optical LNB Kit with ODU32 Converter Global Invacom
08-AMP963

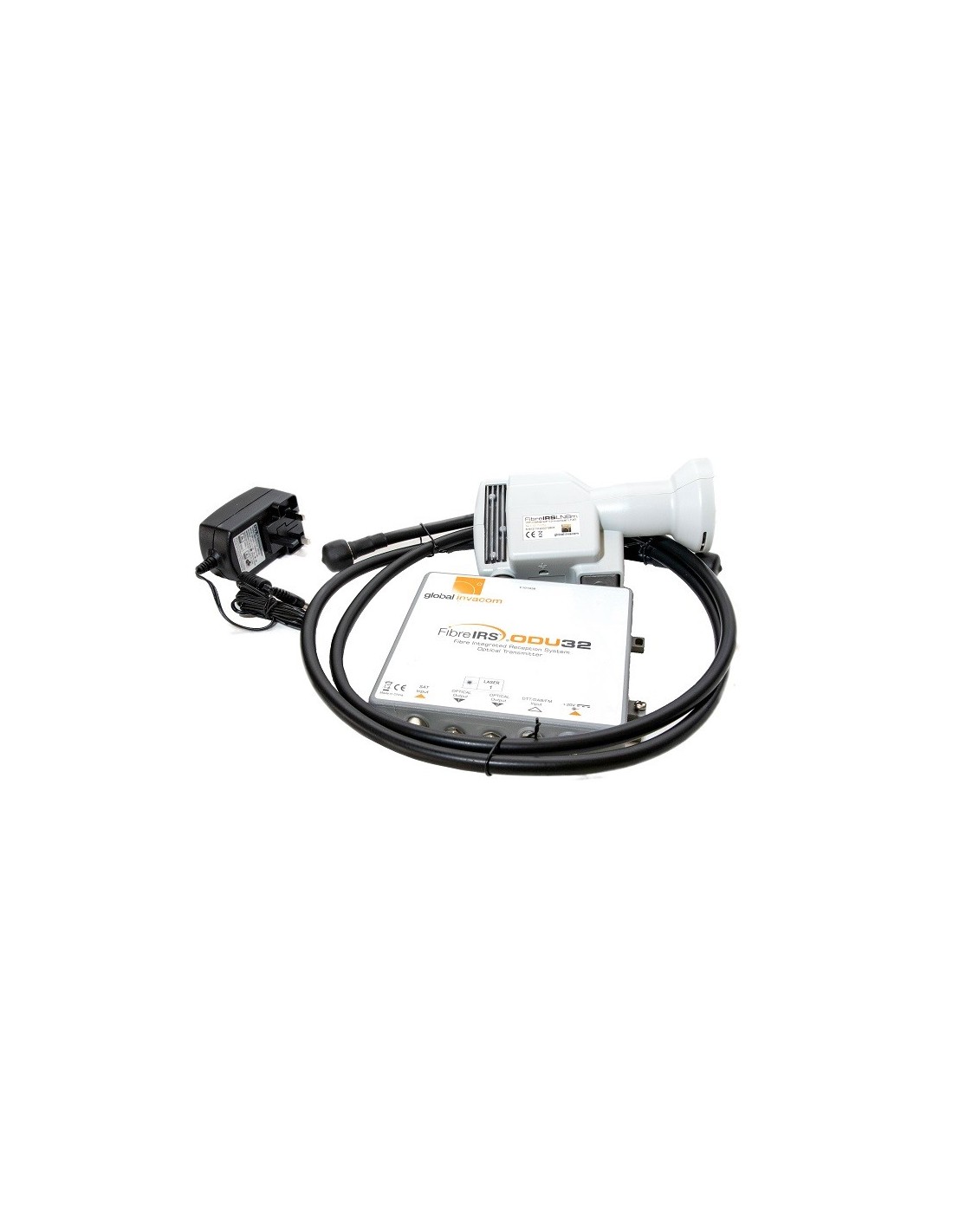

Kit contains, Wholeband LNB, ODU32 Converter, 2m HF Interconnect cable, PSU, weather proof boots for the FC/PC connections.
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Combines Wholeband LNB & DTT/DAB/FM signals
- Distributes signals to 64 outlets via two 32 way PONs
- Fully weatherproof (IP65)
- PSU, mast strap & mounting bracket included
- 10km reach*
Fully weatherproof, the ODU32 is designed for mounting at the antenna location. It accepts and combines signals from the holeband LNB and digital terrestrial antennae (DTT/DAB/FM) which then modulates a laser inside the ODU32. Two optical outputs (FC/PC) are provided for distribution through a Passive Optical Network (PON) of FibreIRS Optical Splitters. Each output of the ODU32 can feed a PON of 32 points or with reduced splits support a reach of 10km. Different FibreIRS GTU’s can be connected at any point (Quad, Quatro & DTT/DAB/FM available).
*Subject to PON losses
- Operating frequency
- V Pol. 0.95-3.0GHz / H Pol. 3.4-5.45GHz
- Gain
- V Pol. 4dB / H Pol. 7dB
- Power supply
- 12V to 20V
08-AMP963
