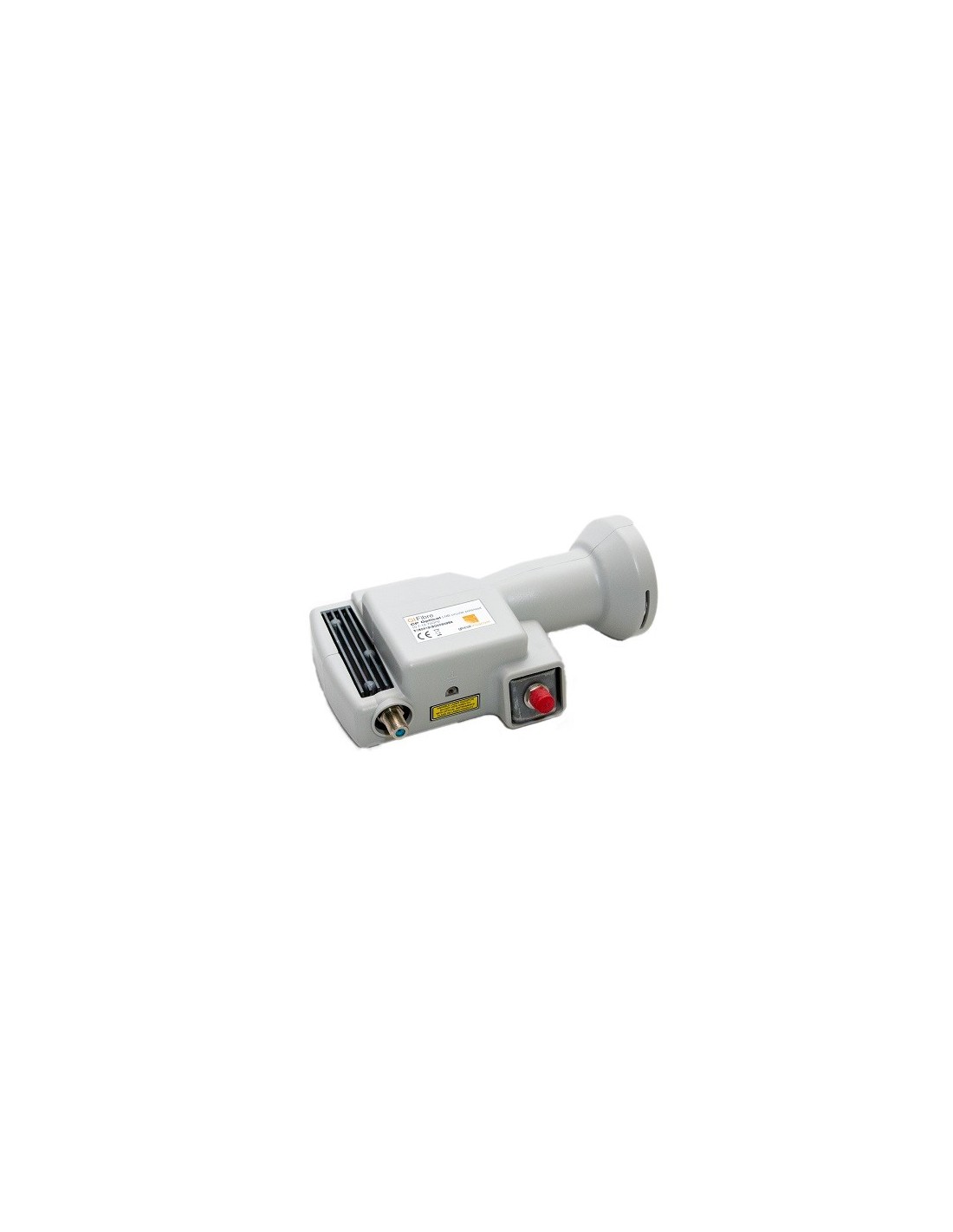

Global Invacom Optical LNB
This innovative new design uses patented technology to frequency stack both horizontal and vertical polarities, creating a single IF frequency range of 950MHz - 5.45GHz. The newly created single band is then frequency modulated optically and output using a 1310nm laser.
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Converts all 4 Universal IF bands to a single optical output (H/H - H/L - V/H - V/L = Single Optical Output)
- Capable of supplying all converted signals to 32 distribution points spread over a 10 km radius
- 40mm Feed Horn or C120 Flange versions available
The Global Invacom Optical LNB radically changes how satellite IF signals are dealt with compared with conventional Universal LNBs.
This innovative new design uses patented technology to frequency stack both horizontal and vertical polarities, creating a single IF frequency range of 950MHz - 5.45GHz. The newly created single band is then frequency modulated optically and output using a 1310nm laser internal to the Optical Output LNB.
Powered separately the Optical LNB takes the required <450mA from a standard 12v supply utilising a standard female F type connector.
Fibre connection is made via a standard FC/PC connector feeding the passive distribution network on single mode fibre optic cable.
- Input frequency
- 10.7-12.75 GHz
- Output frequency
- 950 MHz - 5.45 GHz
- Gain
- 72dB
- Power supply
- 12 V DC
DC 12V / 1.5A - Noise figure
- 0.5dB
- Operating temperature
- Output power
- 7dBm nominal at 25°C
