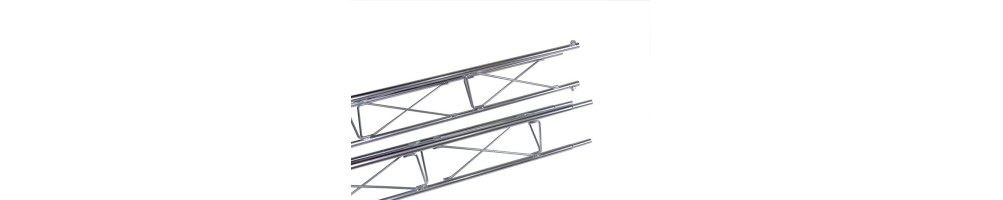

180EC Series Tower
Tower lower section of 2,5 metres of 180 series.
The joint of sections is made through inlay tube + lateral anchorage.
Weight: 7,7 Kg.
Laminated steel tube of diameter 20 mm and thickness 1,5 mm.
Calibrated rod of 7 mm in discontinuos lattice.
Antioxidant protection.
Tower upper section of 1,5 metres of 180 series for mast diameters up to 45 mm.
The joint of sections is made through inlay tube + lateral anchorage.
Weight: 4,5 Kg.
Laminated steel tube of diameter 20 mm and thickness 1,5 mm.
Calibrated rod of 7 mm in discontinuos lattice.
Antioxidant protection.
Tower rotor section of 1,60 metres of 180 series for mast diameters up to 45 mm.
The joint of sections is made through inlay tube + lateral anchorage.
Weight: 4,6 Kg.
Laminated steel tube of diameter 20 mm and thickness 1,5 mm.
Calibrated rod of 7 mm in discontinuos lattice.
Maximum height: 15 metres.
Antioxidant protection.
Fixed base with clamps for tower of 2,5 metres for 180 series.
Antioxidant protection.
Fixed base without clamps for tower of 2,5 metres for 180 series.
Antioxidant protection.
Hinged base without clamps for tower of 2,5 metres for 180 series.
Antioxidant protection.
Fixed base wall mounted for tower of 2,5 metres for 180 series.
Antioxidant protection.
Hinged base without clamps for tower of 2,5 metres for 180 series.
Antioxidant protection.
