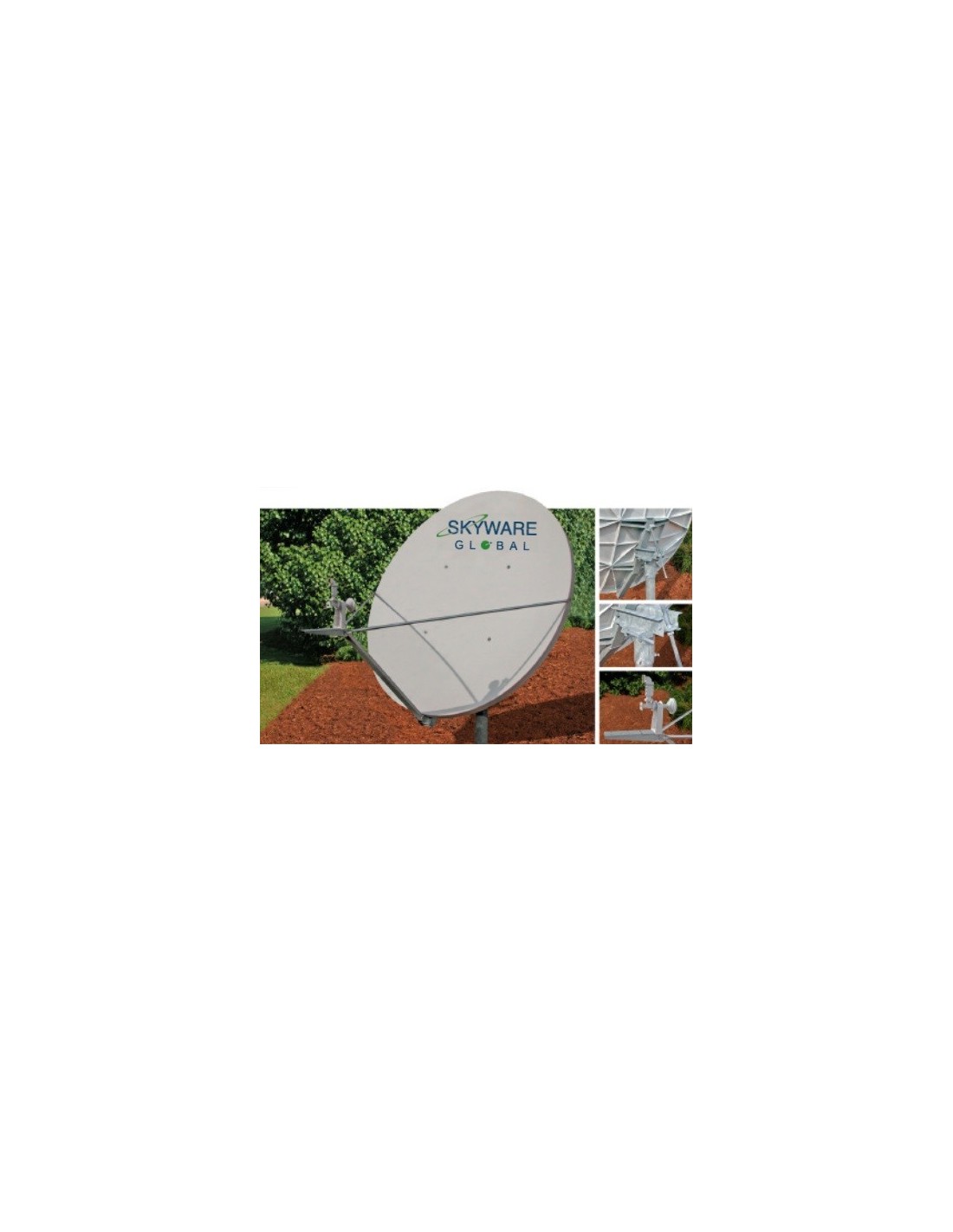

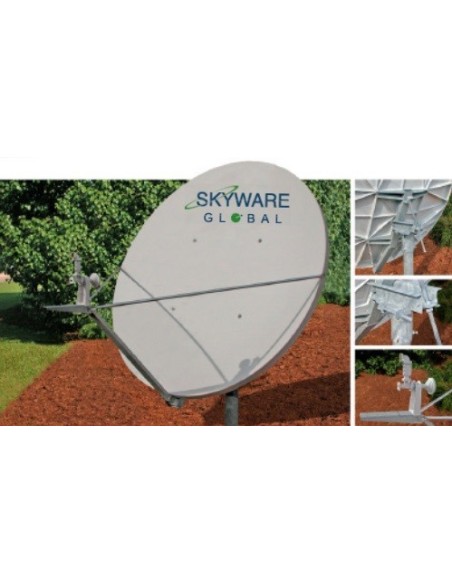

Global Skyware 180cm Ku-band Rx/Tx Type 183 Antenna System
04-AMP142
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Gain
- TX (14.3GHz): 46.8 dBi / RX (12.0GHz): 45.3 dBi
- Polarization
- Linear, Orthogonal
- Diameter
- 1.8m (71in)
- 3 dB Beamwidth
- TX (14.3GHz): 0.79° / RX (12.0GHz): 0.99°
- Feed Interface
- WR75 Flat Flange
- Tx operating frequency
- 13.75 - 14.50 GHz
- Rx operating frequency
- 10.70 - 12.75 GHz
- Insulation
- TX: 80dB / RX: 35dB
- Operating temperature
- -50°C ~ 80°C
- Humidity
- 0% - 100%
- Antenna noise temperature 30º EL
- 23°K
- VSWR
- TX: 1.3:1 / RX: 1.5:1
- Cross-Polarization Discrimination (Linear)
- 30dB on Axis / 26dB in 05 dB Contour
- Reflector material
- Glass Fiber Reinforced Polyester
- Antenna optics
- One-piece Offset Feed Prime Focus
- Mount type
- Elevation over Azimuth
- Elevation adjustment range
- 10° - 90° Continuous fine adjustment
- Azimuth adjustment range
- 360° Continuous +/-10° Fine Adjustment
- Mast pipe diameter
- 114mm (4.5in)
- Wind loading (operational)
- 80 km/h (50mph)
- Wind loading (survival)
- 200 km/h (125mph)
- Atmosphere
- Standard Hardware 720 Hrs - SST Requirements (ASTM B-117) / Marinised option has AISI 316 Stainless Steel Hardware & 2-Part Epoxy paint on all Galvanised Steel components
- Solar radiation
- 360 BTU/h/ft2
- Shock and vibration
- As encountered during shipping and handling
