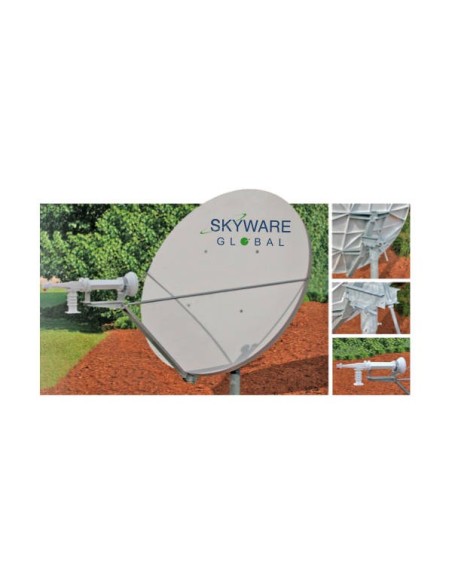

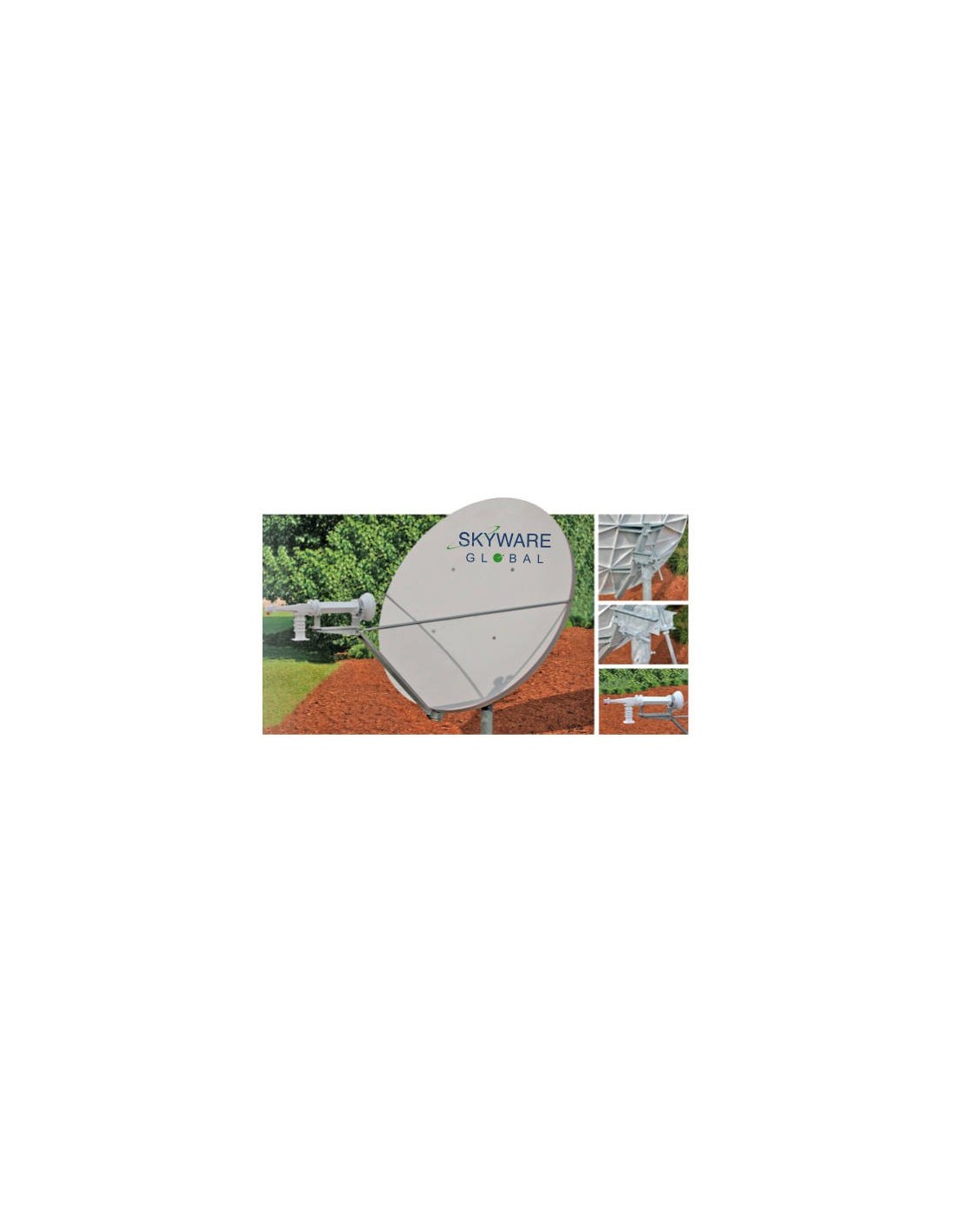

Global Skyware 180cm C-band Rx/Tx Type 183 Antenna System
04-AMP157
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Gain
- TX (6.1GHz): 39.5 dBi / RX (3.9GHz): 35.4 dBi
- Polarization
- Circular; Tx LH, Rx RH; o Tx RH, Rx LH
- Diameter
- 1.8m (71in)
- 3 dB Beamwidth
- TX (6.1GHz): 2.0° / RX (3.9GHz): 3.0°
- Feed Interface
- TX: Type N or CPR-137 / RX: CPR-229
- Tx operating frequency
- 5.850 - 6.425 GHz
- Rx operating frequency
- 3.625 - 4.200 GHz
- Insulation
- TX: 60dB / RX: 60dB
- Operating temperature
- -50°C ~ 80°C
- Humidity
- 0% - 100%
- Antenna noise temperature 30º EL
- 33°K
- VSWR
- TX: 1.3:1 / RX: 1.5:1
- Reflector material
- Glass Fiber Reinforced Polyester
- Antenna optics
- One-piece Offset Feed Prime Focus
- Mount type
- Elevation over Azimuth
- Elevation adjustment range
- 10° - 90° Continuous fine adjustment
- Azimuth adjustment range
- 360° Continuous +/-10° Fine Adjustment
- Mast pipe diameter
- 114mm (4.5in)
- Wind loading (operational)
- 80 km/h (50mph)
- Wind loading (survival)
- 200 km/h (125mph)
- Atmosphere
- Standard Hardware 500h SST - Requirements (ASTM B-117)
- Solar radiation
- 360 BTU/h/ft2
- Shock and vibration
- As encountered during shipping and handling
