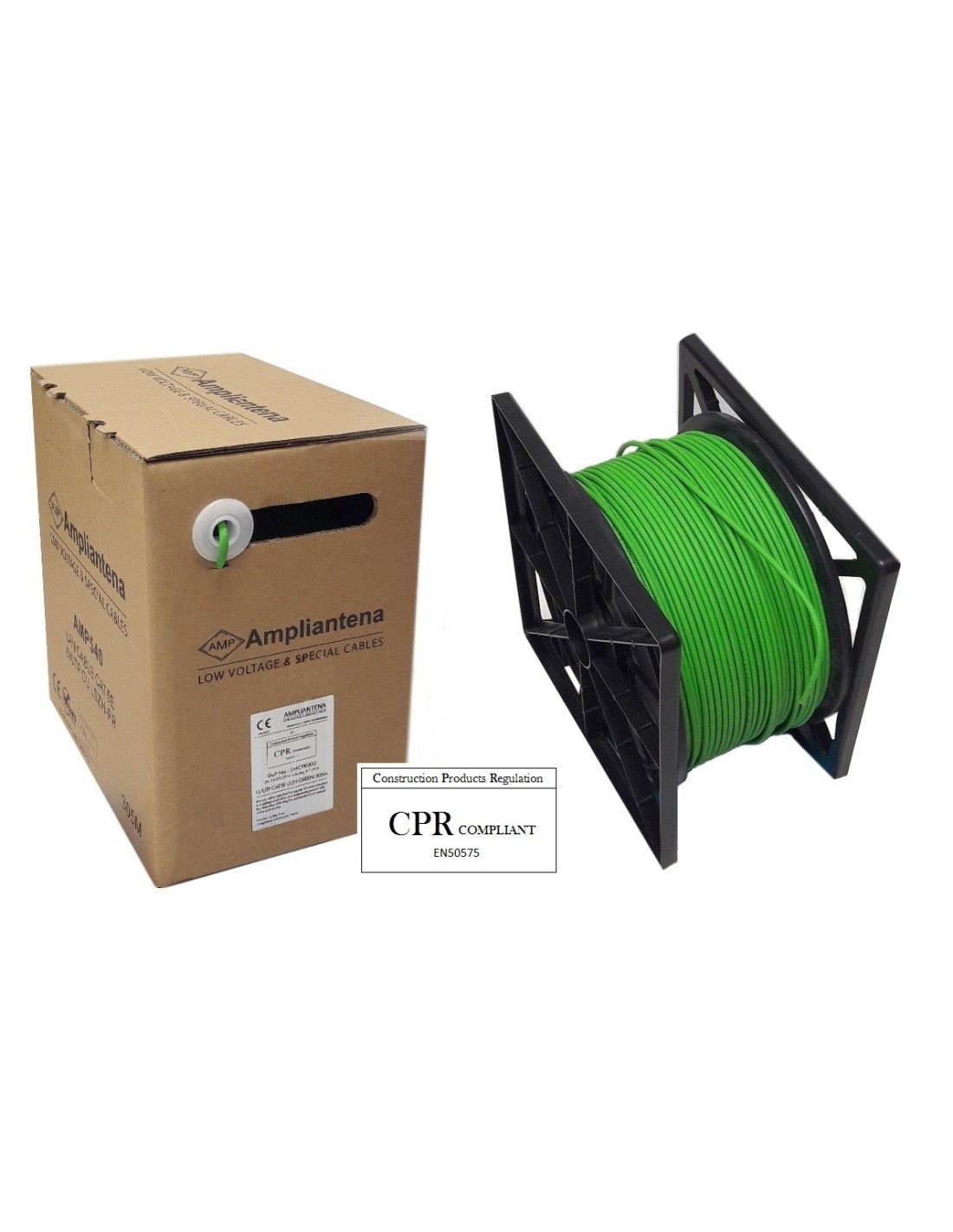

UTP Cable Cat5E CU LSHF 305m Eca Green
44-AMP540
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Type
- UTP
- Bandwidth
- 1 MHz – 100 MHz
- Impedance
- 100±15 Ω
- Color
- Green
- Conductor
- Material: Copper
Nominal diameter: 0.50±0.015 mm
Type: 24AWG - Insulation
- Diameter: 0.90±0.02 mm
Material: HDPE - Category
- Cat5E
- Packaging
- Plastic reel of 305m
- Standard Test
- ISO/IEC11801, TIA/EIA 568C.2
- Cover
- Diameter: 5.0±0.3 mm
Material: LSZH
Thickness: 0.50±0.05 mm - Color code
- Pair 1: Blue, Blue-White
Pair 2: Orange, Orange-White
Pair 3: Green, Green-White
Pair 4: Brown, Brown-White - Tensile strength (Mpa)
- ≥10
- Elongation (%)
- ≥125
- Differential delay (20℃)
- ≤45 (ns/100m)
- DC Resistance (20℃)
- 9.38 (Ω/100m) max
- Unbalanced DC Conductor Resistance
- 5.0 (%)max
- Tear thread
- Yes
- CPR regulations
- Euroclass Eca
44-AMP540
