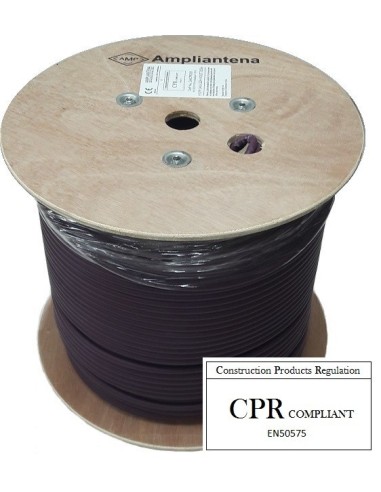

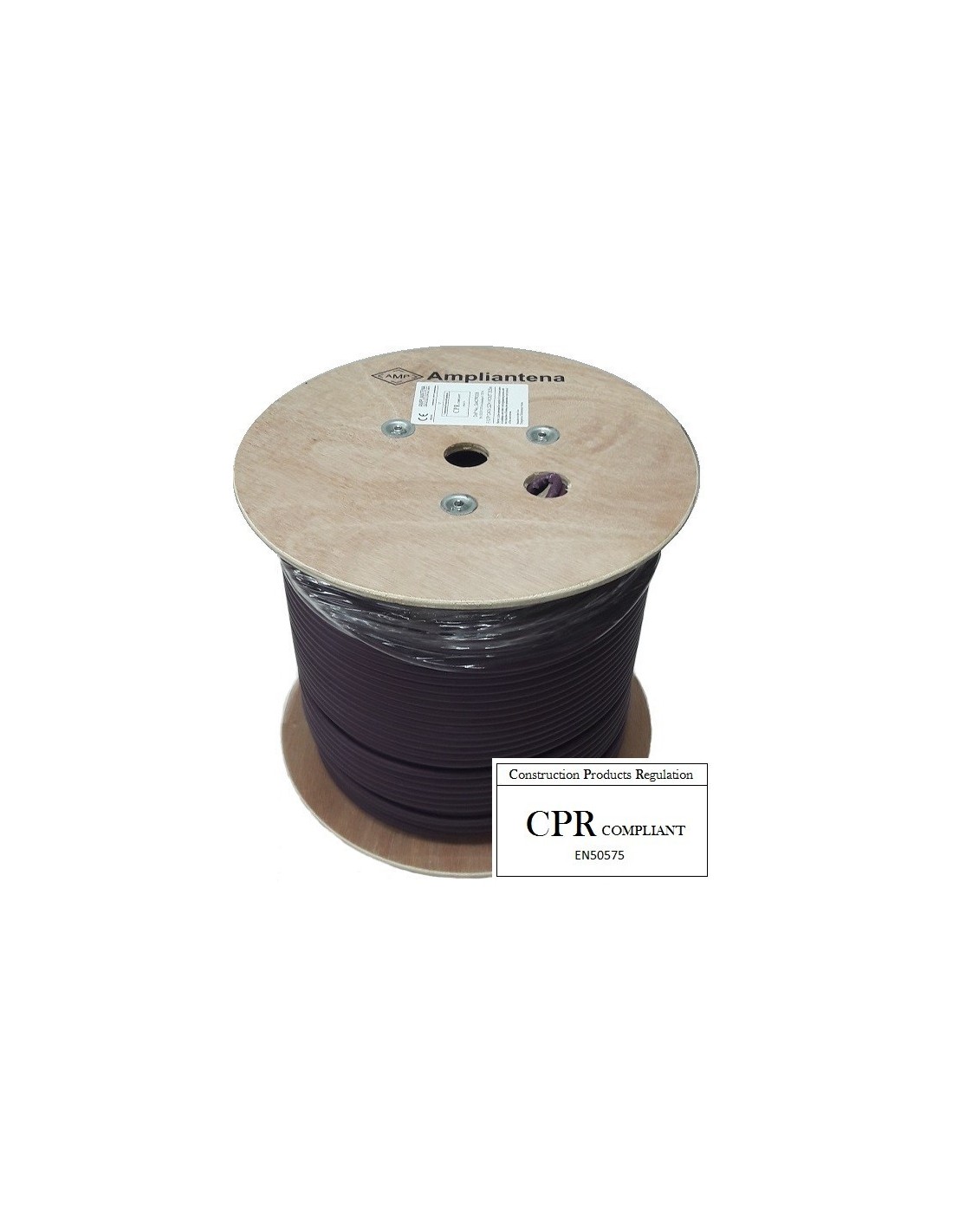

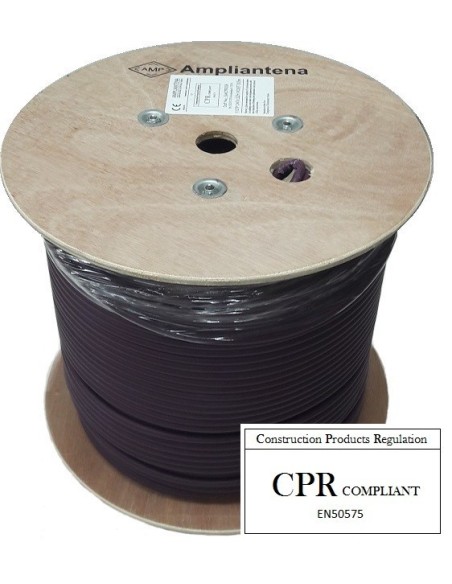

FTP Cable Cat6 CU LSHF 305m Eca Violet
44-AMP568
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Type
- FTP
- Bandwidth
- 1 MHz – 250 MHz
- Impedance
- 100±15 Ω
- Color
- Violet
- Conductor
- Material: Copper
Nominal diameter: 0.57±0.005mm
Type: 23AWG - Insulation
- Diameter: 1.12±0.05mm
Material: HDPE - Category
- Cat.6
- Packaging
- 305m wooden coil
- Standard Test
- ISO/IEC11801, TIA/EIA 568C.2
- Cover
- Diameter: 7.4±0.4 mm
Material: LSZH
Thickness: 0.60±0.05 mm - Color code
- Pair 1: Blue, Blue-White
Pair 2: Orange, Orange-White
Pair 3: Green, Green-White
Pair 4: Brown, Brown-White - Tensile strength (Mpa)
- ≥10
- Elongation (%)
- ≥125
- Differential delay (20℃)
- ≤45 (ns/100m)
- DC Resistance (20℃)
- 9.38 (Ω/100m) max
- Unbalanced DC Conductor Resistance
- 5.0 (%)max
- Tear thread
- Yes
- Aluminium sheet
- Yes
- Crosshead
- Yes
- CPR regulations
- Euroclass Eca
