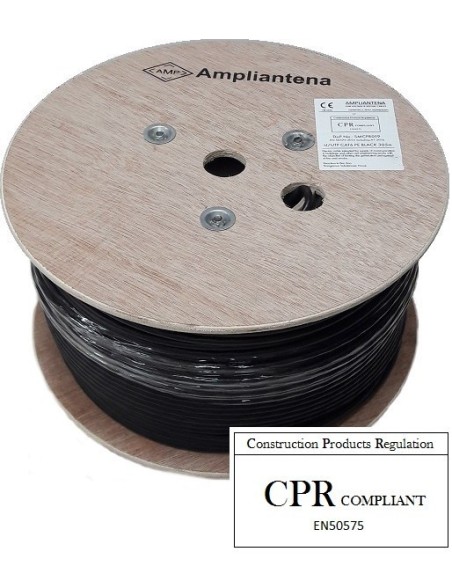

FTP Cable Cat5E CU PE 305m Fca Black
44-AMP562
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Type
- FTP
- Bandwidth
- 1 MHz – 100 MHz
- Impedance
- 100±15 Ω
- Color
- Black
- Conductor
- Material: Copper
Nominal diameter: 0.50±0.005mm
Type: 24AWG - Insulation
- Diameter: 1.0±0.02mm
Material: HDPE - Category
- Cat5E
- Packaging
- 305m wooden coil
- Standard Test
- ISO/IEC11801, TIA/EIA 568C.2
- Cover
- Diameter: 6.2±0.3 mm
Material: PE
Thickness: 0.55±0.05 mm - Color code
- Pair 1: Blue, Blue-White
Pair 2: Orange, Orange-White
Pair 3: Green, Green-White
Pair 4: Brown, Brown-White - Tensile strength (Mpa)
- ≥10
- Elongation (%)
- ≥350
- Differential delay (20℃)
- ≤45 (ns/100m)
- DC Resistance (20℃)
- 9.5 (Ω/100m) max
- Unbalanced DC Conductor Resistance
- 5.0 (%)max
- Tear thread
- Yes
- Polyester tape
- Yes
- Aluminium sheet
- Yes
- CPR regulations
- Euroclass Fca
44-AMP562
