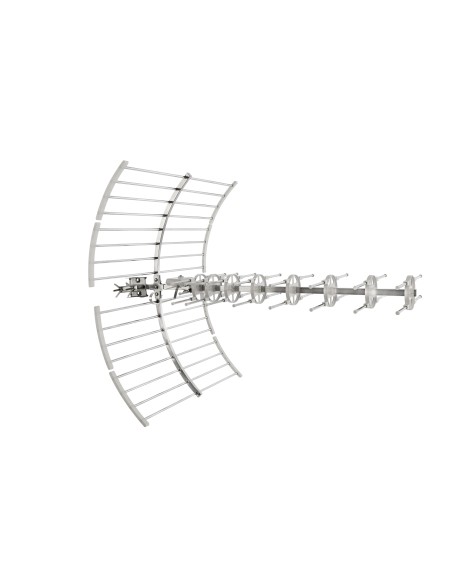

AMP50 Antena UHF Canal 21-60
AMP50 Antena UHF Canal 21-60

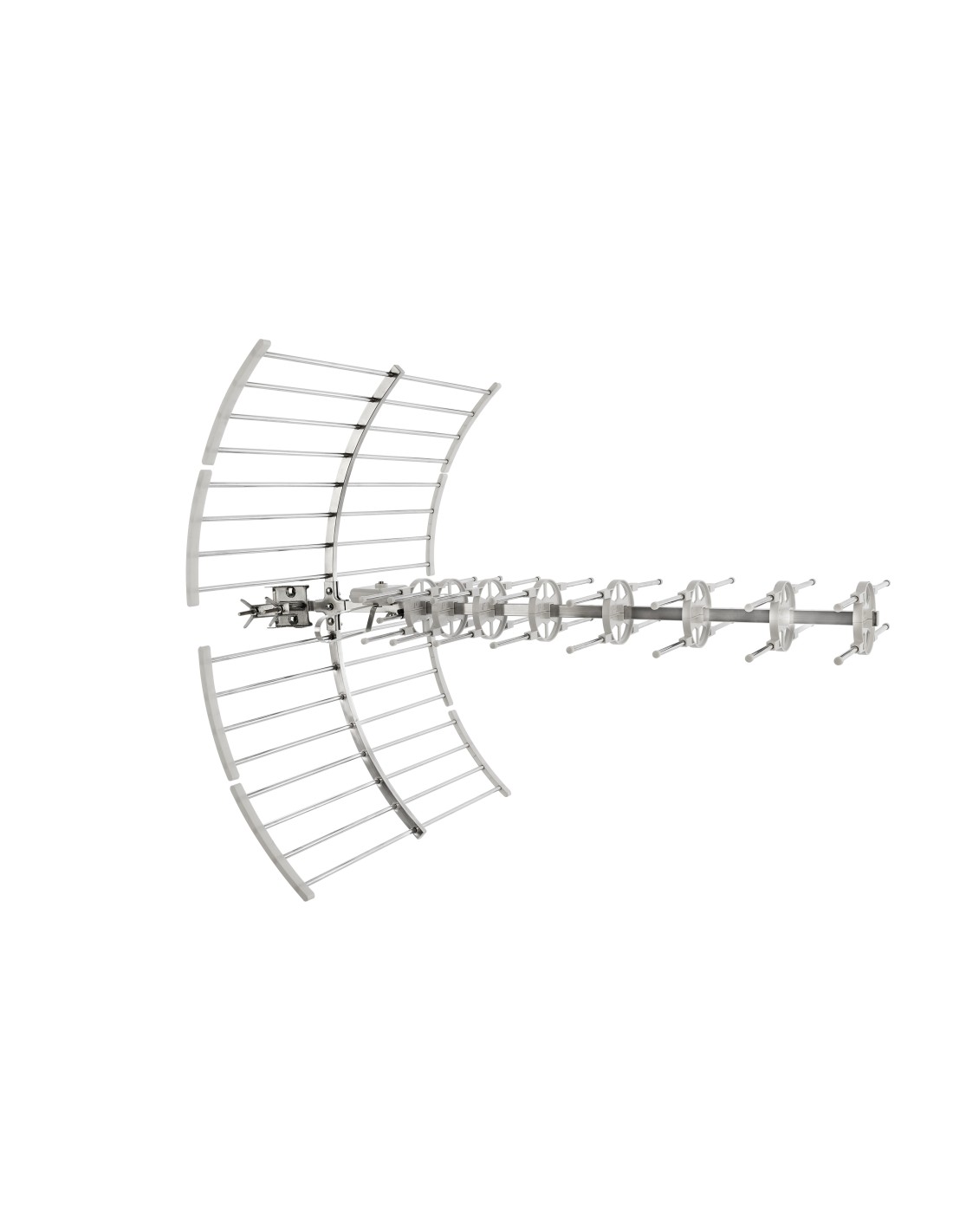

UHF antenna Channels 21-48 Gain 18dB

01-AMP50

Multichannel Yagi antenna specially designed to capture digital signals and terrestrial TV, excellent quality and easy assembly with optimal characteristics and optimal radio performance. Made of aluminum and plastic (for connecting elements) and the junction box in polystyrene with anti-ultraviolet radiation treatment.It supplied pre-assembled for easy installation, with the tie to the mast with large butterfly which allows you to tighten manually without using any tools. Due their high directivity of these antennas are common in facilities of a professional nature, under either the collective and individual includes a balun designed especially for these models of antennas with connection via connector "F".

Are you a dealer or professional installer?

  • Get your quotation in few minutes
  • Exclusive prices
  • Customized manufacturing
Request for quotation

Type
Directive
Operating frequency
470 - 694 MHz
Channels
21 - 48 UHF
Elements
34
Gain
18 dB
Wind resistance (N)
116-150N
Impedance conection "F"
75 Ohms
Directivity ratio
27 dB
Length
990 mm
01-AMP50
