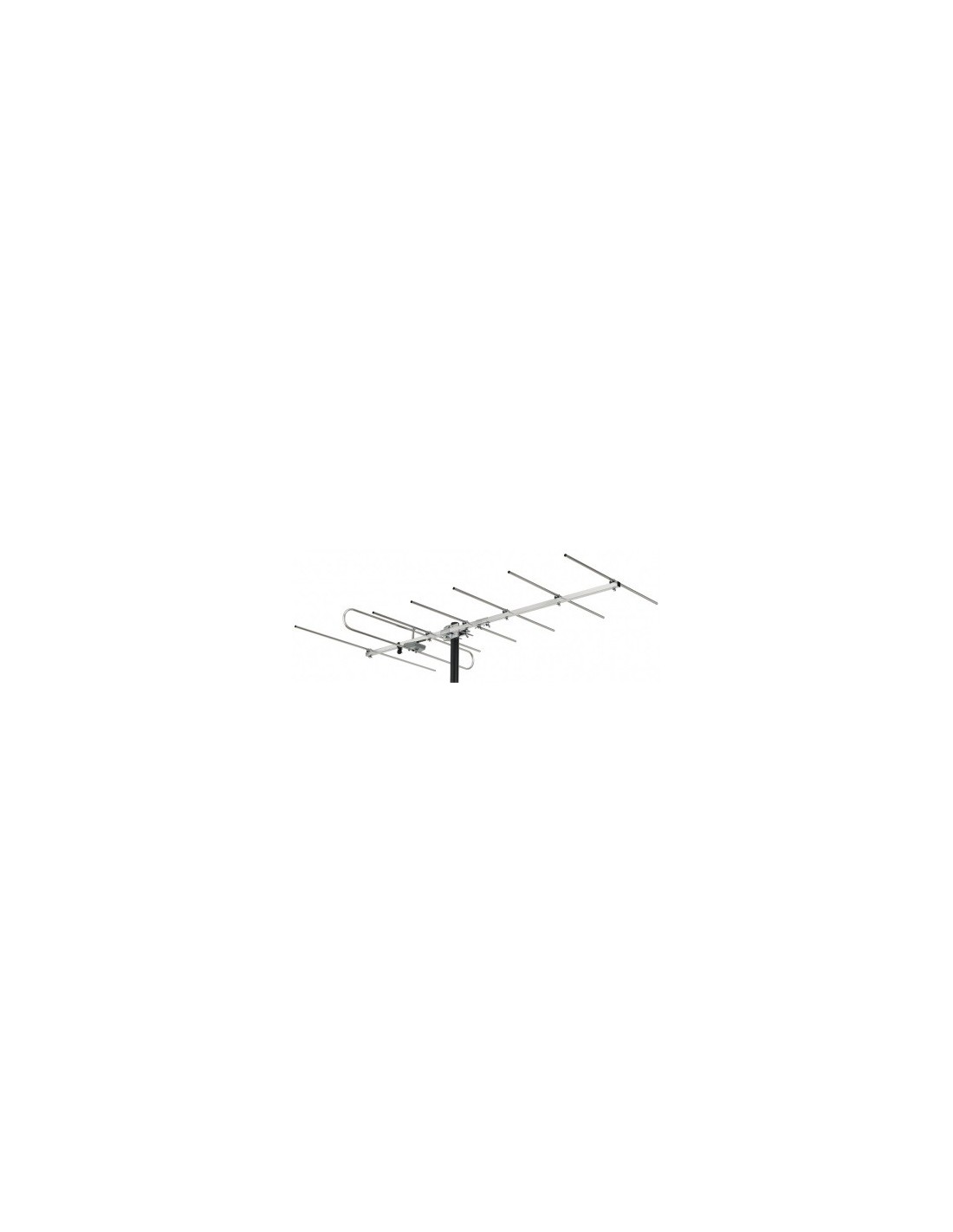

Band III antenna of 7 elements Channels 5-12
01-AMP15
Yagi antenna for Band III for channels 5 to 12 constructed of aluminum-plated antioxidant protection. Robust antenna with high resistance to inclement weather. Junction box made of polystyrene with anti-ultraviolet radiation treatment.
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
TECHNICAL CHARACTERISTICS
|
Type: |
Directive |
|
Operating frequency: |
174-230 MHz |
|
Channels: |
5/12 |
|
Elements: |
7 |
|
Gain: |
9,5 dB |
|
Front-to-Back ratio: |
18 dB |
|
Tilt angle: |
≤27/47 º |
|
Horizontal beamwidth: |
28 Hº |
|
Vertical beamwidth: |
36 Vº |
|
Polarization: |
V/H |
|
Wind load Km/h: |
60 N |
|
Length: |
1535 mm |
|
Connection impedance "F": |
75 Ω |
